Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA

Product Categories

Xiamen Ai Power Technology Co., Ltd.

Contact Now

Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA

Name: Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA
Brand: Ai Power
Price: 1 USD

Wholesale Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA from china suppliers

Brand Name : Ai Power

Model Number : AD165

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, T/T,

Supply Ability : 200 units per month

Delivery Time : 30 to 35 days

Packaging Details : Foam & plastic

Rated Speed : 1500rpm/1800rpm

Rated voltage : 230V-480V

Alternator Brand : Leroysomer, Meccalte, Stamford, Marathon

Options : Silent canopy/trailer/ATS/Daily Fuel Tank

Rated current : 216A

Phase : Single/Three Phase

Control panel : Smartgen, Deepsea, ComAp

Insulation Class : H

Contact Now

Construction Machinery Soundproof 120KW 155KVA Generator Power With Korea Doosan Diesel Generator

AI power Doosan series generator set adopts Doosan engine as the power source. Doosan group founded in 1896 is one of the largest consortium in Korea. Doosan started producing diesel engines for the first time in 1958. Doosan went into full production under the license of MAN technology in 1975, and ISUZU technology in 1979. Furthermore, Doosan began to produce the CNG engine in 1998, so our reinforced line up from Diesel engine to Natural Gas engine could supply more choices and meet the various needs of our customers. Doosan acquired Daewoo Machine in 2005 to strengthen the ability of designing and producing the engine.

Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA

Doosan Engine Specifications:

GENERAL ENGINE DATA

Engine manufacture

Doosan Infracore Co., Ltd

Engine brand

Doosan

Engine model

DP086TA

Engine speed (rpm)

1500

Engine output(kWm)

Standby Power

152

Prime Power

137

Engine Type

4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged

Bore x Stroke (mm)

111 x 139

Displacment (litre)

8.071

Compression Ratio

16.7:1

FUEL SYSTEM

Type

Bosch type in-line pump with integrated, electromagnetic actuator

Governor

Electric type ( all speed control )

Fuel Consumption (litre/hour)

25% prime load

9.2

50% prime load

17.4

75% prime load

25.5

100% prime load

33.7

EXHAUST SYSTEM

Maximum Back Pressure (kPa)

5.9

Exhaust gas temp. after turbo. (prime/standby power) (°C)

537/ 610

Exhaust Gas Flow(prime/standby power) (m3/min)

33.9

AIR INDUCTION SYSTEM

Maximum Intake Air Restriction (kPa)

with Clean Filter Element

2.16

with Dirty Filter Element

6.23

Intake Air Flow(prime/standby power) (m3/min)

13.49 / 14.33

COOLING SYSTEM

Cooling method

Fresh water forced circulation

Coolant capacity

Engine Only : Approx. 14 lit., With Radiator : Approx 44 lit.(standard)

Water Temperature

Maximum for standby and Prime (°C)

103

Before start of full load (°C)

Thermostat Type and Range

Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C

LUBRICATION SYSTEM

Lub. Method

Fully forced pressure feed type

Oil pan capacity

Max. 15.5 liters , Min. 12 liters

Lub oil pressure (kPa)

Idle Speed Min.

100

Governed Speed Min.

250

Maximum Oil Temperature (°C)

120

ELECTRICAL SYSTE

Battery Charging Alternator

28.5V x 45A alternator

Starting motor

24V x 6.0 kW

Battery Voltage

24V

Battery Capacity

100 Ah (recommended)

Product Photos:

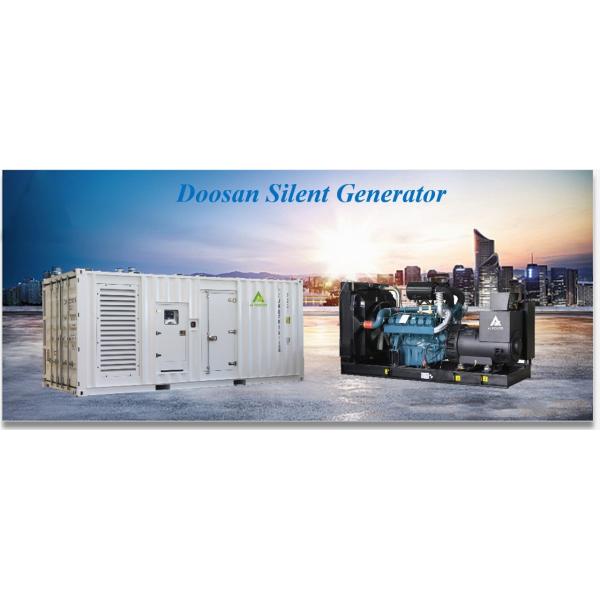

Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA

Open Type.

● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

FAQ

1. What is your warranty period?

A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?

A. Yes, we can accept OEM.

3. What’s your payment term?

A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4. What’s your delivery time?

A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
