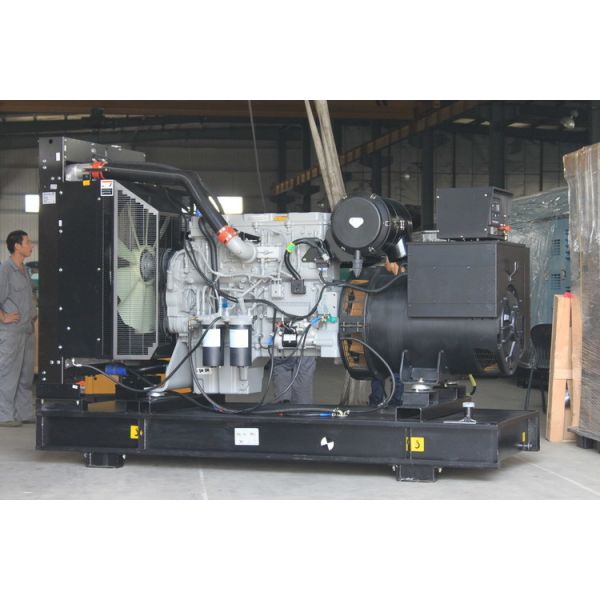

Diesel Machine In Stock 180KVA Generator Set With 1106A-70TAG3 144KW Diesel Generator Silent Type
AI power UK Perkins series generator set adopts UK Perkins engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
Product characteristics:
1. Our cooperate with famous diesel engine -Powered by famous Perkins engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Generator Specifications:
| GENERAL ENGINE DATA | |
| Engine manufacture | Perkins Engines Company Limited |
| Engine brand | Perkins |
| Engine model | 1106A-70TAG3 |
| Engine speed (rpm) | 1500 |
| | Prime power | Standby power |
| Gross engine power (kWb) | 164 | 180 |
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 144 | 160 |
| Cylinders | 6-cylinder, vertical in line |
| Cycle | 4 stroke |
| Induction system | Turbocharged, air charge cooled |
| ICombustion system | Direcct injection |
| Compression ratio | 16.1:1 |
| Bore * Stroke (mm) | 105*135 |
| Cubic capacity (Litre) | 7.01 |
| |
| FUEL SYSTEM | |
| Injector | Mechanical |
| Fuel pump | DP210G |
| Fuel Consumption (litre/hour) | |
| | 110% | 44.6 |
| | Prime power | 41.6 |
| | 75% | 31.8 |
| | 50% | 20.1 |
| | 25% | 10.8 |
| |
| COOLING SYSTEM | |
| Total system capacity(litre) | 21 |
| Engine capacity(litre) | 9.5 |
| Max. top tank temperature (°C) | 110 |
| Thermostat operating range (°C) | 82-93 |
| Shutdown switch setting(°C) | 118 |
| |
| LUBRICATION SYSTEM | |
| Max. total system oil capacity(litre) | 16.5 |
| Min. oil capacity in sump(litre) | 12.4 |
| Max. oil capacity in sump(litre) | 14.9 |
| Oil temperature (in sump) normal continuous operation(°C) | 125 |
| Pressure at max. speed(kPa) | 340 |
| Oil consumption at full load(% of fuel) | <0.1 |
| |
| INDUCTION SYSTEM | |
| Maximum air intake restriction of engine (kPa) | |
| | Clean filter | 2 |
| | Dirty filter | 3 |
| Combustion air flow(standby/prime power) (m3/min) | 13.87/13.1 |
| |
| EXHAUST SYSTEM | |
| Back pressure for total system (kPa) | 6 |
| Exhaust gas temp. after turbo(standby/prime power)(°C) | 538 |
| Exhaust gas flow (standby/prime power) (m3/min) | 33.85/31.55 |
| |
| ELECTRICAL SYSTEM | |
| Alternator voltage (volts) | 12 |
| Alternator output (amps) | 85 |
| Stater motor type (volts) | 12 |
| Starter motor power (kw) | 4.2 |
Detection and protection function
-
Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm
-
Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit
Optional features
-
RS485 (DSE7320)RS485(DSE7320)
-
Fuel level display and low-alarm
-
Water level low-alarm
-
Water Pre- heating in low temperature
-
ATS
-
Automatic parallel (DSE6120 / DSE7320)
-
Other self-definition functions
-
big power 1mva silenced diesel generator set price
1. What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
A:Yes. Gensets powered by USA famous engine, with UK famous engine, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
A:T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?
A: Yes. For mass orders, we can use customer's logo instead of ours.
