Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

Product Categories

Xiamen Ai Power Technology Co., Ltd.

Contact Now

Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

Name: Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA39G11
Brand: Ai Power
Price: 8500 USD

Wholesale Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11 from china suppliers

Brand Name : Ai Power

Model Number : A80

Certification : CE, ISO,SONCAP

Place of Origin : China

MOQ : 1 unit

Price : USD8500 per unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 units per month

Delivery Time : 25 to 30 days

Packaging Details : Foam & plastic

Product name : Cummins 80kva generator

Engine : USA Cummins

Rated voltage : 220/380V,230/400V, 240V/415V

Speed : 1500RPM

Output type : AC Three Phase

Rated current : 160A

Protection class : IP23

Warranty : 12 Months or 1000 Hours

Contact Now

Product Description

Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

Genset output

Generator set model	Voltage	Hz	Phase	P.F.	Prime Power		Standby Power
Generator set model	(V)				KVA	KW	KVA	KW
A80	230/400	50	3	0.8	80	64	88	70
•220/380V, 240/415V, 254/440V is avaliable
•60Hz is avaliable

Engine model	1104A-44TG2
Engine speed (rpm)	1500
	Prime power	Standby power
Gross engine power (kWb)	73	81
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)	64	70
Cylinders	4-cylinder, vertical in line
Cycle	4 stroke
Induction system	Turbocharged, air-to-air charge cooled
Compression ratio	Direcct injection
Bore * Stroke (mm)	18.23:1
Cubic capacity (Litre)	105*127

Engine
GENERAL ENGINE DATA
Engine manufacturer	Dongfeng Cummins Engine Co. Ltd
Engine brand	Cummins
Engine model	4BTA3.9-G11
Engine speed (rpm)	1500
Engine output(kWm)
Standby Power	80
Prime Power	70
Continuous Power	TBD
No. of Cylinder	4
Aspiration	Turbochanger& Aftercooler
Bore * Stroke (mm)	102 * 120
Displacment (litre)	3.9
Compression Ratio	17.3:1
Engine Idle Speed (rpm)	950-1050
FUEL SYSTEM
Type Injection System	BYC PB Direct Injection
Fuel Consumption (litre/hour)
100% prime power	17.6
75% prime power	13.2
50% prime power	9.1
25% prime power	5.3
EXHAUST SYSTEM
Maximum Back Pressure (kPa)	10
Exhaust Gas Temperature (standby/prime power) (°C)	548/526
Exhaust Gas Flow(standby/prime power) (litre/sec.)	134/125

Alternator
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	TAL-A44-C
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	85/68
----------------Standby-27°C	93.5/74.8
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Products Show

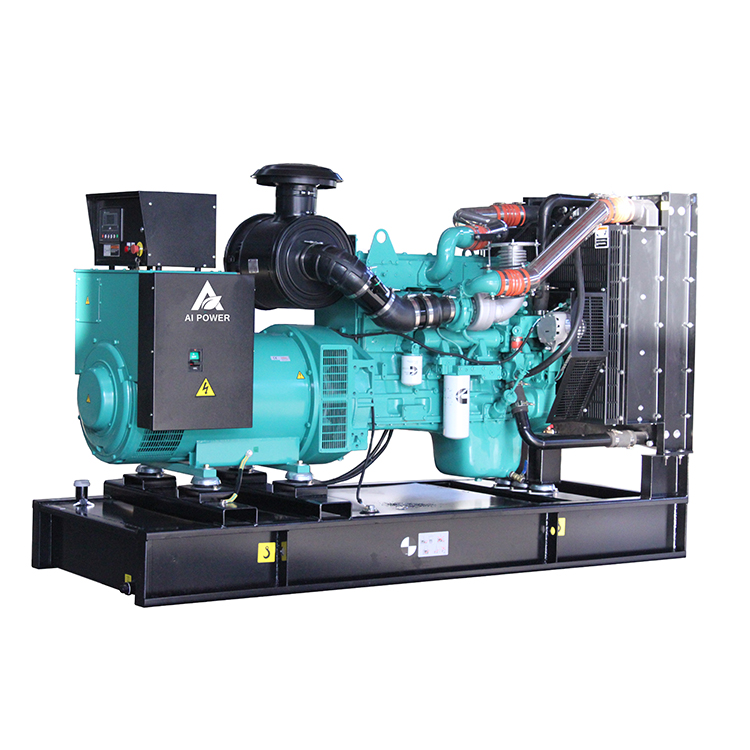

Open Diesel Generator:

Famous brand engine couple with high quality alternator
Large size cooling radiator
Heavy duty steel base frame
Strong anti-vibration mat
Standard free maintenance battery
AC alternator for battery charger
Heavy-duty air filter, oil filter, water filter
Famous brand controller and breaker
Optional fuel tank, silent canopy, ATS, synchronization panels.

Silent Diesel Generator:

More than 2mm thick steel to make the canopy
High quality paint materials and strict powder paint
Impedance combined type silencer
Stainless steel door locks and hinges and 180° revolvable and disassemble door
High quality soundproof and insulation materials
Transparent viewing window
Lifting earis mounted in the base frame
Standard 20', 40' and 40HQ container canopy for option

Ai Power Company

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

Packing & Delivery

FAQ

1.What's our power capacity range of generator?
 Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
 4.What's your warranty?
 Answer: One year or 1000 hours, which one comes first.
 5.Can you use our logo?
 Answer: Yes, we can use customer's logo instead of ours.
 6. Can you accept small order?
 Answer: Yes, we can accept trial order.
 7. What's your delivery time?
 Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.

Mr.Jacky Zhou
 Xiamen Ai Power Technology Co., Ltd.
 Power System Supplier- Generator Sets, Lighting Tower & Air Compressor.
 Add: No.28, 1/F East Side, No.12 Haijing East Road, Haicang Free Trade Area, Xiamen city, China
 Skype: jacky88chou | Email: jacky(at)aipowergen.com | www.aipowergen.com
 Tel: +86-13400651023 | MP/WhatsApp/Wechat: 0086-13400651023

Product Tags:

Cummins 4BTA3.9-G1164kw Diesel Generator

Cummins 4BTA3.9-G11 Electrical Power Generator

1500RPM 64kw Cummins Diesel Generator

Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11 Images
